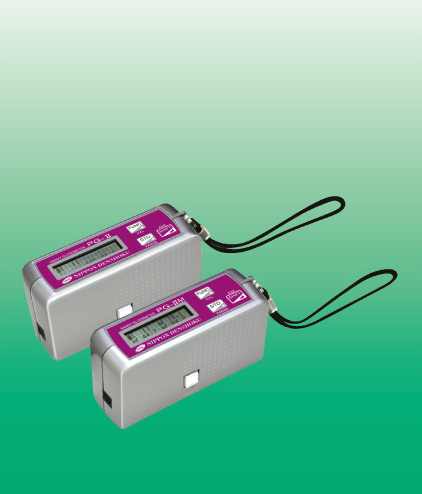

PG-II & IIM are handy type light-weight and compact gloss meters that are based on such various industrial standards for glossiness measurement as JIS, ISO, ASTM and DIN. PG-II can measure single angle of any of 20°, 45°, 60°, 75° or 85°, while PG-IIM can measure 3 angles of 20°, 60° and 85° simultaneously. These models are usable as sensors on production lines by remote control through RS-232C interface to be connected with an external unit like PC.

Features

These are handy type gloss meters that are light-weight, compact and portable.

Double-beam method has been adopted, so no warming-up time is required.

Even a sample of high gloss and specular gloss can be measured in an instant by the equipped automatic sensitivity switchover function.

These models are equipped with such various measuring functions as reference value setting, average value measurement, etc.

400 pieces of measurement value data can be saved into the built-in memory.

Remote control is possible by connection with an external unit like PC through RS-232C interface.

Exclusive printer and data transfer software are available for use (option).
