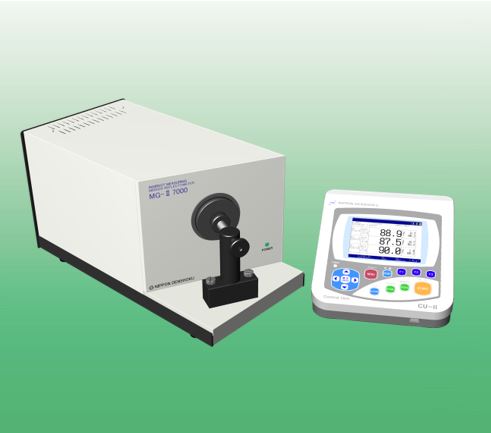

Indirect Measuring Mirror Reflectometer

MG-II 7000

MG-II 7000 is a mirror reflectometer of indirect measuring method that is based on the “Reflectance indirect measuring method” for “Automotive mirrors (ISO 5740)”. It allows reflectance measurement for a sample with specular surface. Just by setting a sample on a holder at the measuring aperture and pressing a button on the operation panel, measured data appears on the display with such very easy operation. This model will be a most suitable instrument to evaluate the samples with surfaces processed as plated and polished, in addition to automotive side mirrors and various types of convex mirrors.

Features

This is a reflectometer based on the “Reflection indirect measuring method for automotive mirrors”.

It can measure reflectance of surface-processed samples such as by mirrored, plated and polished.

Operation is very easy as just by setting a sample on a holder at the measuring aperture and pressing a button.

This model consists of a measuring unit and a separated optical unit.

Light source is selectable from a halogen lamp (standard) or white LED (option).
